Screw oil press machine for soybean and peanut

Now, in the cooking oil processing industry, the most used oil press machine is screw oil press machine. Screw oil press machine is the advanced equipment in the oilseeds processing machinery recently. Screw oil press machine can process various kinds of oil seed,such as,peanut,soybean,corn germ,rapeseed,sunflower,cottonseed,sesame,palm kernel,and so on.

screw press machinePeanut and soybean oil screw oil press machine

Mainlytechnicalparameters of screw oil press machine for peanut and soybean:

Oil material Oil press rate Thickness of the material slag Residual oil ratio(%)
Sesame 42-55 1.0-1.5 ≤7
Peanut 40-50 0.8-2 ≤8
Rapeseed 28-43 1.0-1.5 ≤8
Sunflower seeds 30-40 1.2-1.5 ≤8
Soybean 10-16 0.8-1.5 ≤7


What is the features of screw oil press machine ?

1,Simple structure, easy to use, adaptable, high oil rate, energysaving, and low noise. Material selection is exquisite, reasonable design, reliable quality.

2,operation, less land occupation, labor saving, power saving, high yield, and oil quality is good, and so on.

3,All technical indexes are leading in the same trade of the state owned oil press.

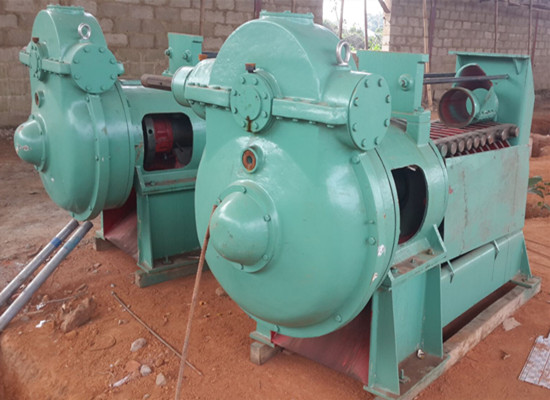

screw oil press machine Peanut oil screw press machine is waiting for installation

Advantages of screw oil press machine:

1.When screw oil press machine is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2.Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.

3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.

5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.

6.Therefore, relative movement among particles creates neat which is necessary during manufacturingbecause of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

Henan Doing Company is a professional manufacturer of peanut and soybean oil screw oil press machine.Our screw oil press machine is suitable for home use, small cooking oil mill, medium sized cooking oil mill and large scale cooking oil factory.
