3-20tph vital breakthrough palm oil plant photo


3-20tph vital breakthrough palm oil plant

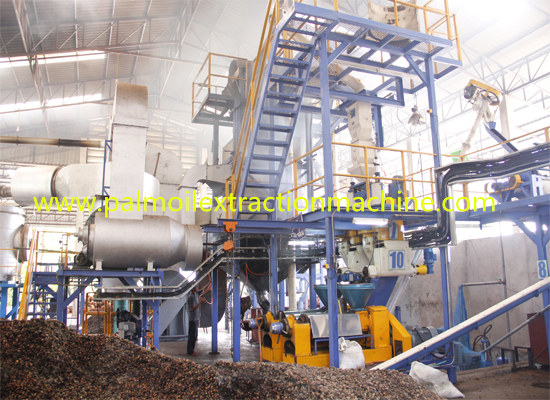

palm oil mill plant

Plam oil mill plant

Want to set up a palm oil plant of your own ? With the rapid development of the world economy ,more and more people want to produce their own palm oil mill in their home rather than buying some from the grocery store. The usage of the palm oil all over the world are increasing every year . So the condition is favorable to setting up a palm oil plant by your own.So,if the answer is "Yes",you may need our professional palm oil plant for your palm oil mill.

To produce palm oil,the palm oil plant is used. The production process of the palm oil plant is different to most other forms of seed oil processing. The palm oil is the world's second largest edible vegetable oil, only ranking after soybean oil. At present, Malaysia and Indonesia is two largest palm oil producing countries in the world. Besides, there are many palm oil processing plants in Africa, such as Nigeria, Ethiopia, Congo, Ivory Coast etc.
With years experience in the palm oil production field, we have gained rich experience in the palm oil plant, below is the introduction of 3-20tph vital breakthrough palm oil plant .

palm oil plant
Palm oil plant
The following is detail introduction of our 3-20tph vital breakthrough palm oil plant .

Work flow of new technology palm oil plant:

1. Fresh palm fruit bunch in palm oil plant:
FFB means fresh palm fruit bunch.
FFB is the raw material of palm oil plant.Palm oil fruit can be harvested all the year round. After cutting from palm trees, fresh palm fruit bunch must be processed within 2days. Or the acid value will be high and affect the final palm oil quality.

the transporting fresh palm fruit
The transporting fresh palm fruit

2. Threshing section of palm oil plant:
Threshing section in palm oil plant is used to separate palm fruit seeds and the empty palm fruit bunch.

thresher machine of palm oil plant
Threshing machine of palm oil plant

 3. No steam sterilizing section of new technology palm oil plant:
 This section is used to sterilize palm fruit, the difference between our new palm oil plant and traditional way is: No Steam, No cages; No sewage (No waste water);

hot air stove
Hot air stove of palm oil plant

4. Crushing section of new technology palm oil plant:
This section is mainly to crush the palm fruit, keep palm kernel the oil unbroken,this palm oil plantcan ensure the crude palm oil is extracted easily and effectively. The palm kernel will be transported to nut polishing system.

barker of palm oil plant
Barker of palm oil plant

5. Palm fruit pressing section of palm oil plant:
To extract the crude palm oil from the palm fruit,the palm fruit pressing machine is necessary for whole set palm oil plant ; Low oil residual in palm cake. High quality cake, which can be made to animal feed.

press machine of palm oil plant
Press machine of palm oil plant

6. Filter section of palm oil plant:
The filter is used to remove the impurities in the crude red palm oil.

plate filter of palm oil plant
Plate filter of palm oil plant

7. Crude red palm oil-CPO

Crude palm oil
Crude palm oil

8. Refinery and fractionation section

palm oil refinery machine
Palm oil refinery machine
The advantages and disadvantanges of new technology palm oil plant :

Advantages of palm oil plant:

  A: No steam sterilizing, less consumption, save energy;
  B: No sewage, no waste water treatment; Less space, less cost;
  C: Empty bunches or kernel to burn. Fully use of all materials during palm oil production process.
  D: Palm Cake has low plant mill takes smaller place than traditional method;
  F: Generate electricity by the system itself, solve electricity problem.

Disadvantages of palm oil plant:

Whole system has limits of capacity: 3tph-5tph -10tph-20tph-30tph;
This system is mainly proper for small and medium palm oil mill plant;

Traditional New
Cost High Low
Space Large Small
Capacity ≥ 30tph < 30tph
     Process With steam Without steam
Consumption High Save energy
Pollution Waste water No waste water

Comparison of traditional and new technology of palm oil plant

1. Work flow of new technology palm oil plant:
 FFB-Threshing-No steam sterilizing-Crushing-Pressing-Filtering-Crude Palm oil

Empty palm bunches-boiler

2. Brief introduction of traditional palm oil plant :

Raw materials storage section---- Sterilizing section----Threshing section----Crushing & Pressing section----Clarification section----Crude oil storage and transportation section----Fiber separation section----Kernel recovery section----Sewage treatment section
The traditional technology palm oil plant is proper for bigger capacity palm oil milling machine , like 30tph, 60tph, 80tph and above. Unlike traditional process, we have designed a new technology specially for smaller capacity palm oil milling machine , like 3tph-5tph-10tph-20tph.

palm oil plant
Palm oil plant
