Crude edible oil refining process machinery


Crude edible oil refining process machinery/vegetable oil refinery introduction:

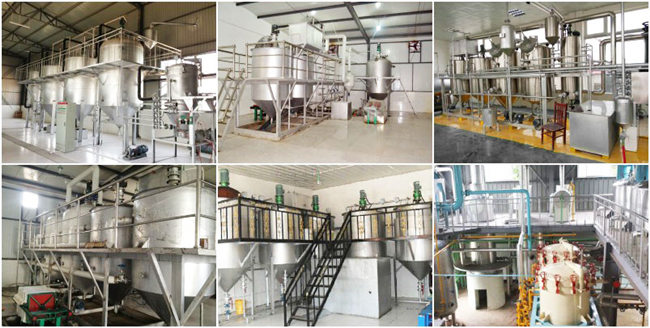

edible oil refining machine

Edible oil refining machine

Edible Oil Refinery and Edible Oil Refining have been the areas of excellence for Henan Doing. We are the basic designers, manufacturers and exporters of complete Edible Oil refining machine to refine the crude oil.

Henan Doing manufactures unique edible oil refining process machinery with complete unique construction. Our edible oil refining process machinery are specifically designed to give the minimum operation costs and maximum output results.The
edible oil refining process machinery can refine almost all types of oils. The refined oil quality depends on the type of crude oil and its chemical structure. So far, we have exported our edible oil refining process machinery to 25 countries of the world.

Process Description of Edible Oil Refining Machine:

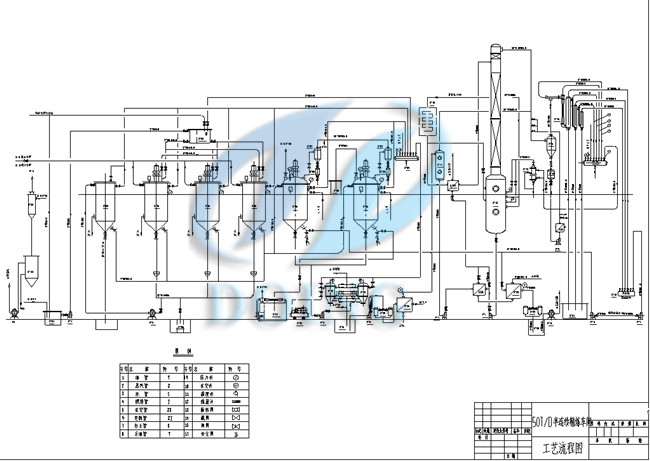

edible oil refining process
50tpd edible oil refining process

For refining the edible oil, there are three basic processes in the refinery. First process is neutralizing the oil in the neutralizer to remove the Free Fatty Acids (FFA) by adding caustic soda. Oil is heated up to about 60°C by thermic fluid coils and oil is stirred by stirrer. Then soap stock formed due to chemical reaction is allowed to settle at the bottom of the neutralizer from where it is taken out into soap pan.

Neutralized oil is drawn into the second vessel called bleacher where color of oil is removed by edible oil refining process machinery with aid of chemicals such as carbon black and bleaching earth. Oil is generally heated up to 110°C by thermic fluid coils. Stirring is also continued. Bleaching process is done under vacuum.

Bleached oil then goes to the filter press where bleaching earth and chemicals are separated and clean bleached oil is then drawn to deodorizer of edible oil refining process machinery where oil is heated above 110°C through thermic fluid coils and then live steam is given to the oil from the bottom steam nozzles and temperature of oil is raised up to 200 to 220°C through thermic fluid coils. Entire process is done under high vacuum. Thus smell is removed from the oil in the deodorizer. Then it goes to cooler where water circulating coils take away heat and oil is cooled. Again it goes to second filter press where completely refined and transparent color less oil is obtained.

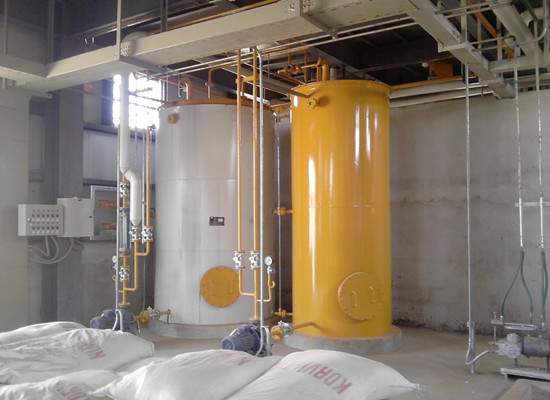

Thermic Fluid Boiler, Vacuum Pump, Barometric Condenser, Catchalls, Steam Generator etc. play their role in the refining process. So these equipments are part of the edible oil refining process machinery and connected with the vessels through pipelines.

edible oil refining machine

Small scale edible oil refining machine

Edible Oil Refining Machine with Fractionation Process :

»There will be chilling plant for fractionation process which will include shell and tube chiller, compressor, motor, pump, condenser, control panel box etc.
»Crystallizing unit which is similar to neutralizer complete with chilling coil.
»Filter press for separation of palm olein and palm stearin.
